Product Details
Place of Origin: China
Brand Name: Dingang
Certification: SGS,ITS,BV
Model Number: Dingang - PPAL
Payment & Shipping Terms
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: T/T,L/C
Supply Ability: 5000 Tons / Per Month
Product Name: |
Prepainted Aluminium Sheet |
Alloy: |
AA3003 , 3004 , 3105 |
Temper: |
O , H12 , H14 , H16 , H18 , H24 , H26 , H32 , H34 , H111 , H112 , T3 , T5 , T6 Etc |
Application: |
Construction,roofing,Decoration,Building,etc. |
Sample: |
Avaliable |
Type: |
Color Coated Aluminum Sheet/ Coil |
Product Name: |
Prepainted Aluminium Sheet |
Alloy: |
AA3003 , 3004 , 3105 |
Temper: |
O , H12 , H14 , H16 , H18 , H24 , H26 , H32 , H34 , H111 , H112 , T3 , T5 , T6 Etc |
Application: |
Construction,roofing,Decoration,Building,etc. |
Sample: |
Avaliable |
Type: |
Color Coated Aluminum Sheet/ Coil |

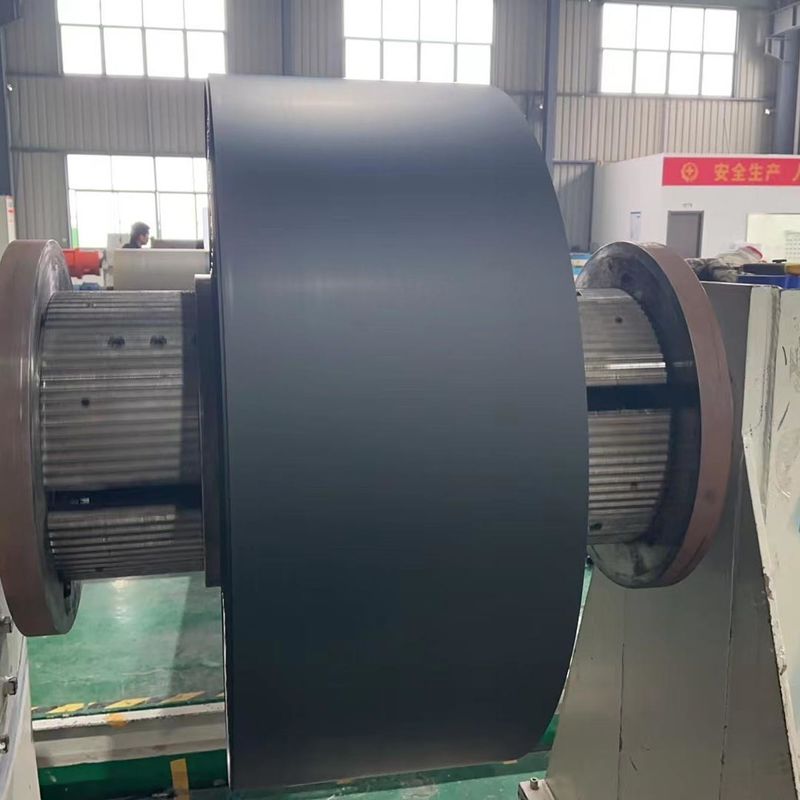

AA3005 H47 Painted aluminum coil used in rain water guttering system & ceiling system
Description of prepainted aluminium :
Color coated aluminum ( prepainted aluminum ) , which is produced with aluminum sheet or coil and processed by coating with color or pattern.
In common sense , here are two kinds of coating PVDF and PE . Compared with other section steel prepainted aluminum coil is the more popular material , because of its excellent property. Firstly the property is very stable so the surface is erosion resistant , warranty could up to 30 years long after special treatment . Then , the density is the lowest among metal material when volume is fixed .
Specifications :
Alloy : AA1050 , 1060 , 1100 , 3003 , 3004 , 3105 , 5052 , 5005 , 5754 , 5083 , 6061 , 6063 , 8011 Etc
Temper : O / H16 / H18 / H22 / H24 ( All According Customers' Requirement )
Standard : ASTM , ASME , AISI , JIS , DIN , EN , ISO , GB And Etc
Thickness : 0.1 mm - 2.5 mm
Width : 30 - 2500 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
Interior Diameter : 405 mm , 505 mm , 150 mm etc
Color : Ral Color Code Or As Per Clients Requirements And Sample
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100
| Alloy | 3003 , 3004 , 3105 | Temper | O , H12 , H14 , H16 , H18 , H24 , H26 , H32 , H34 , H111 , H112 , T3 , T5 , T6 Etc |
| Coating Type | PE Or PVDF | Interior Diameter | 508 mm |
| Material Width | 300mm 350mm 380mm | Material Thickness | 0.5 - 2.5mm |
| Color Option | Ral Color Code Or As Per Clients Requirements And Sample |
Paint Performance of prepainted aluminium :
| Test Item | Paint | ||||
| PVDF | PE And Others | ||||
| With Varnish | Without Varnish | ||||
| Paint Film Thickness , μ | ≥ 22 | ≥ 30 | ≥ 18 | ||
| Shine Tolerance | Shine ≥ 80 Unit , ± 10 Unit Allowed | ||||
| Shine ≥ 20-80 Unit , ± 7 Unit Allowed | |||||
| Shine < 20 Unit , ± 5 Unit Allowed | |||||
| Pencil Hardness | ≥ 1H | ||||
| Abrasion Resistance, L/μm | ≥ 5 | -- | |||
| T-bend | ≤ 2T | ≤ 3T | |||
| Impact Strength | 50KG . CM Without Depainting And Crack | ||||
| Adhesive Force ( Class ) | ≥ 1 | ||||
| Boiling Water Resistance | Unvarying | ||||
| Chemical Resistance | Acid Endurance | Unvarying | |||
| Alkali Stability | Unvarying | ||||
| Oil Resistivity | Unvarying | ||||
| Resistance To Solvent | ≥ 70 | ≥ 50 | |||
| Scrub Resistance | ≥ 10000 Times Unvarying | ||||
| Dirt Resistance | ≤ 15 % | -- | |||
| Salt Spray Resistance ( class ) | ≥ 2 class | -- | |||
Color Coated Aluminum Types :
Packing :
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)
