Product Details
Place of Origin: China
Brand Name: Dingang
Certification: ISO,BV,SGS,ITS
Model Number: Prepainted Aluminium Coil
Payment & Shipping Terms
Minimum Order Quantity: 5 Metric Tons
Price: Negotiable
Packaging Details: Seaworthy Packing With Wooden Pallet ( Eye To Sky Or Eye To Wall Packing)
Delivery Time: 30 Days After Order Confirmed And 30% Down Payment Received
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Metric Tons/Per Month
Alloy 3003 H16 Marble Pattern Designed Pre-Painted Aluminium Coil Aluminum Sheet With 0.20-3.00mm Thickness
Pattern Designed Pre-painted Aluminum:
Dingang has developed brick,wood,stone,camouflage and special patterns of pre-painted aluminum decorative plate.It has the characteristics of vivid texture,easy-shaping,anticorrosion,energy conservation&environmental protection,easy installation and safety.It is excellent replacement of traditional stone and glass as decorative materials.
Specifications :
Alloy : AA1060,3003,3005,3105,5052 and etc
Temper : H16/ H24 ( All According Customers' Requirement )
Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
Thickness : 0.20 mm - 3.00mm
Width : 30 - 2650 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
Interior Diameter : 405 mm,505 mm,150 mm etc
Color : Ral Color Code Or As Per Clients Requirements And Sample
Design Pattern: Wood,Marble,Stone Wrinkle and so on
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100
Paint Performance of Coated Aluminum (Pre-painted Aluminum) :
3D Effect Grain Aluminum:
3D effect pre-painted metal material has the appearance of wood,hand feeling of the concave-convex formed by time and various textures.It has the advantages of thermal insulation,heat preservation,good leakproofness.Meanwhile,it has the characteristics of stable performance&anti-corrosion.
Advantages & Characteristics:
*Much higher adhesion between coating & substrates.
*PE & PVDF paint,high durability & wide application.
*Compared with stone material,could be punched or bent to an shape.
*Distinct & vivid texture.

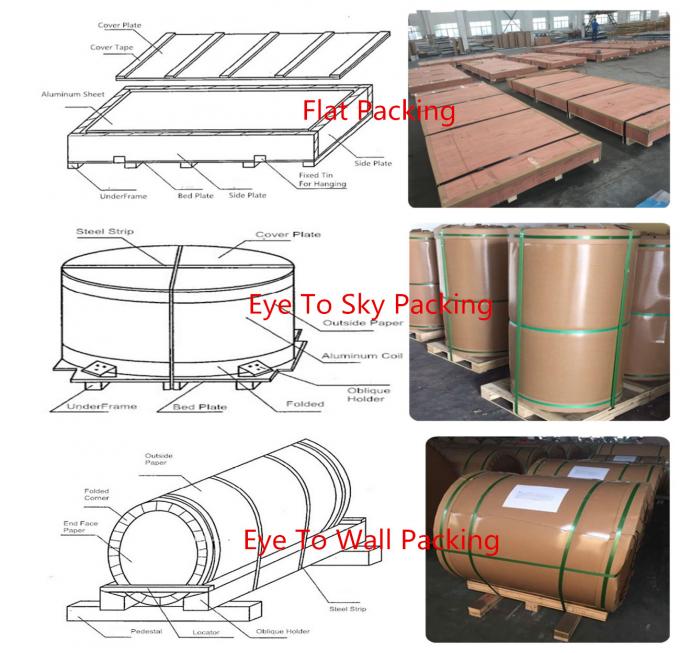

Packaging:
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)

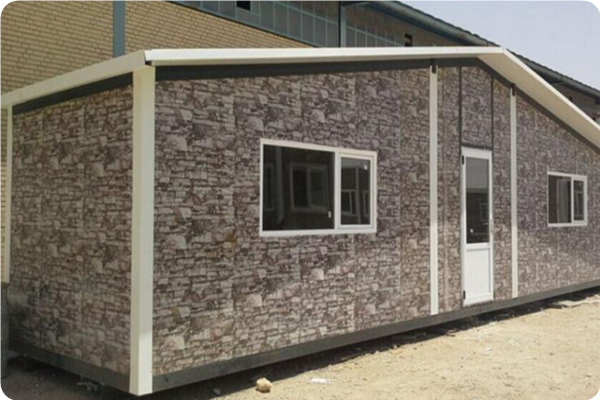

Pre-painted Aluminum Application:
Metal Roofing Building & Roller Shutter Door & Building Wall Decoration
